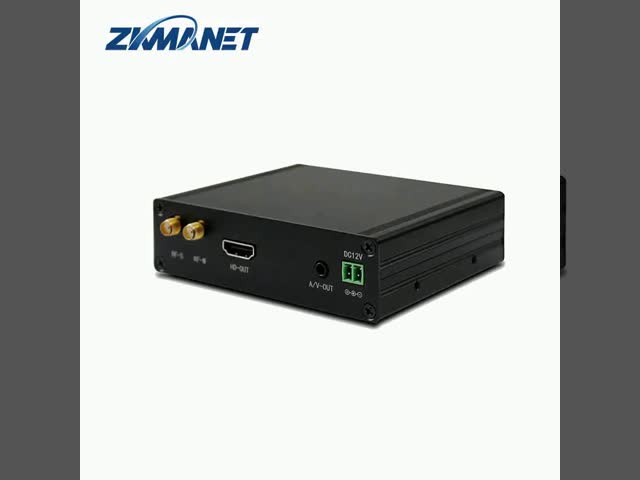

ZKManet2441UM 2W 15KM HDMI Video Transmission Module for Air-to-Ground Transmission
The ZKManet2441UM is a compact and portable airborne radio with HD and stable image quality. It adopts the current leading COFDM modulation technology, allowing for capturing high-quality images in high-speed motion and real-time transmission in non-line-of-sight (NLOS) conditions. Encryption is applied to the images and data during transmission, supporting a transmission rate of 30Mbps and a range of 30KM for air-to-ground transmission. It is well-suited for long-term and high-data-flow wireless transmission applications, such as UAVs, USVs, and robots.
* Range no less than 30 km(LOS)
* Supports 3 bands (800MHz/1.4GHz/2.4GHz)
* IP transparent data transmission
* Compact size and light weight
* Rugged aluminum alloy housing
* Low power consumption
* With TTL and RJ45 port
| Model | ZKManet2441UM | Brand | ZKMANET |
| RF Parameters | Frequency | 800MHz/1.4GHz /2.4GHz | |
| Bandwidth | 1.4MHz/3MHz/5MHz/10MHz/20MHz | ||
| RF Channel | 1T2R | ||
| Output Power | 33dBm | ||
| Range | 30km (LOS) | ||
| Network Parameters | Network Mode | One-to-one and one-to-many | |
| Data Rate | 30Mbps(Max) | ||
| Encryption | ZUC/SNOW3G/AES Optional | ||
| Physical/ Environment | Dimensions | 103.5*61.5*22mm | |
| Weight | 142g | ||
| Working Temp | -40ºC~+65ºC | ||
| Electronic Parameters | Power Supply | DC12V | |
| Power Consumption | <12W | ||
| Other | Data Interface | RJ45*2,TTL*3 | |
Zhongke Lianxun (Shenzhen) Co.,Ltd is a factory mainly research and development products include COFDM wireless transceivers; 4G-LTE wireless transceivers, 4G/5G wireless receivers, UAV/UGV radio data link, as well as MESH/SOC communication series products based on intelligent communication. All these products are widely used in law enforcement forces and government departments such as public security, armed police, , forest fire prevention, civil air defense and maritime affairs. In particular, intelligent communication products for special robots solve the problem of long-distance communication and control of robots in complex environments.
We has multiple patents with independent intellectual property rights, has established a sound quality system and national standard system that comply with ISO9001 standards, and strictly produces products in accordance with national standards and internationally recognized standards such as CCC, CE, FCC, etc. It has obtained the Radio Transmission Equipment Model Approval Certificate issued by the Ministry of Industry and Information Technology of China and has passed the wireless product testing certification of the Ministry of Public Security.
