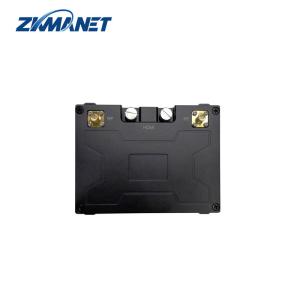

4W 49km MESH UAV Drone Data Link Radio Transmitter with AES256 Encryption
ZKManet2451UM is a 4W MESH video data link that can be used in various communication combinations for different usage scenarios. It can be used on moving vehicles, ships, robots, drones, unmanned boats, etc., allowing for easy plug-and-play operation without the need for configuration or parameter changes. It is primarily used for multimedia interconnection between drones and individual soldiers, and between individual soldiers and base stations.
* Full transparent IP data transmission
* Long Range up to 49km (LOS)
* Data Rate up to 82Mbps
* Support LAN Port and TTL Port
* Small size and Light weight
| Model | ZKManet2451UM | |
| RF parameters | Frequency | 1400-1460MHz (300MHz-3.8GHz Customizable) |
| Bandwidth | 5/10/20/40MHz | |
| RF Channel | 2T2R | |
| Output Power | 4W | |
| Network parameters | Network capacity | 8 nodes(Costomizable) |
| Date Rate | 82Mbps | |
| Encryption | AES | |
| Range | 40-49 km (LOS) | |
| Physics/Environment | Dimensions | 113*84*38mm |
| Weight | 450g | |
| Working Temp | -40ºC~+65ºC | |
| IP Rating | IP54 | |
| Electrical parameters | Power supply | DC12-24V |
| Power Consumption | <12W | |
| Other | Data Interface | Support |
| LAN Port | Support | |
| TTL Port | Support | |
